Name: Plastic 1MHz 16MPa PZT Ultrasonic Transducer For Flow Meter
Brand: Yujie
Price: 1 USD

Brand Name : Yujie

Model Number : HJ-SB1000-1709A

Certification : ISO9001

Place of Origin : Jiangsu, China

MOQ : 100 Piece/Pieces

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 3~30 working days

Packaging Details : Carton #: 22x22x18cm

Theory : Ultrasonic Sensor

Usage : Flow tranducer

Frequency : 1Mhz

Port : Shenzhen

Contact Now

1MHz Ultrasonic Transducer Plastic Housing Accurate Measurements For Flow Meter

Specifications:

Model	HJ-SB1000-1709A
Frequency(kHz)	1MHz±5%
Bandwidth	200kHz

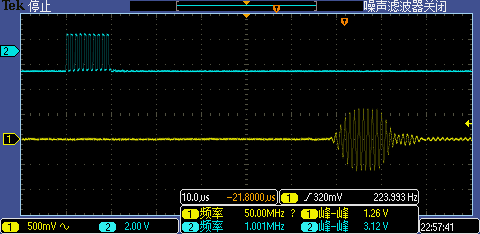

General sensitivity 0 dB=3 Vp-p;Period:5；; Distance:7cm	>1.0v
Beam width(-3dB full angle)	9±2°
Static capacitance	520PF±20%
Min. parallel resistance	700Ω±30%
Max. driving Voltage(2% duty cycle tone burst)	＜200V
Operating temperature	0～50℃
Protection/waterproof level	IP68
Max. driving pressure	1.6MPa
Housing material	PPS
Wire length	65cm

Plastic 1MHz 1.6MPa PZT Ultrasonic Transducer For Flow Meter

All specification taken typical at 25℃
